Stainless steel hexagonal nut connection head M5 security connector CNC nut
High-end 3C Digital & Electronic Equipment
Practical Products
Mobile phone motherboard fixing nuts, laptop housing locking nuts, tablet assembly nuts, earphone/watch micro nuts, camera module fastening nuts
CNC Production & Processing Features
Focus on miniaturization and lightweight design. We process micro precision nuts with internal threads from M1 to M3; some watch nuts can reach an internal thread size of M0.5.
CNC ensures high coaxiality between internal threads and outer contours, with accurate special-shaped profiles (square, oval, etc.). Slot tolerance ≤ ±0.01 mm.
The surface is smooth and clean, and can be treated with anodizing, black chrome plating, zinc plating, etc., to improve appearance and wear resistance.
Suitable for the compact assembly requirements of 3C products, most are thin and countersunk nuts.
With exquisite appearance and delicate, premium touch, they match the high-end look of 3C products.
The internal threads fit tightly with micro bolts, enabling smooth assembly and disassembly without slipping or thread damage, avoiding damage to nuts and bolts during disassembly.
Ideal for frequent disassembly (e.g., mobile phone repair). High precision is maintained after long-term use without loosening or thread stripping, ensuring stable internal structure of electronic devices and preventing failures caused by loose components.
Common CNC Machining Problems & Key Points
-
Micro internal thread issues: Incomplete thread profile, pitch deviation, and easy tap breakage often occur. High-precision micro taps must be used, with controlled tapping speed and feed rate. Micro go/no-go gauges are used for inspection after processing to avoid mismatching with bolts.
-
Surface treatment defects: Color difference and coating peeling easily occur after anodizing and black chrome plating, especially at the edges and corners of special-shaped nuts. Ensure scratch‑free and burr‑free surfaces before processing, and strictly control process parameters to avoid uneven oxidation.
-
Countersunk machining problems: Uneven countersink depth and unsmooth conical surfaces often lead to protrusion or depression after assembly. Control CNC milling depth, use special countersink tools, and inspect countersink angle and depth after processing to ensure tight fitting with components.
-
Batch processing efficiency issues: Given the high demand for 3C nuts, balance precision and efficiency. Optimize tapping parameters, use batch fixtures to avoid dimensional deviation from frequent clamping. Regularly check tap wear and replace worn taps promptly to prevent thread defects.
We have introduced advanced equipment and technology from Japan and Germany (CNC 5-axis and 6-axis machines) to better serve our customers' needs.

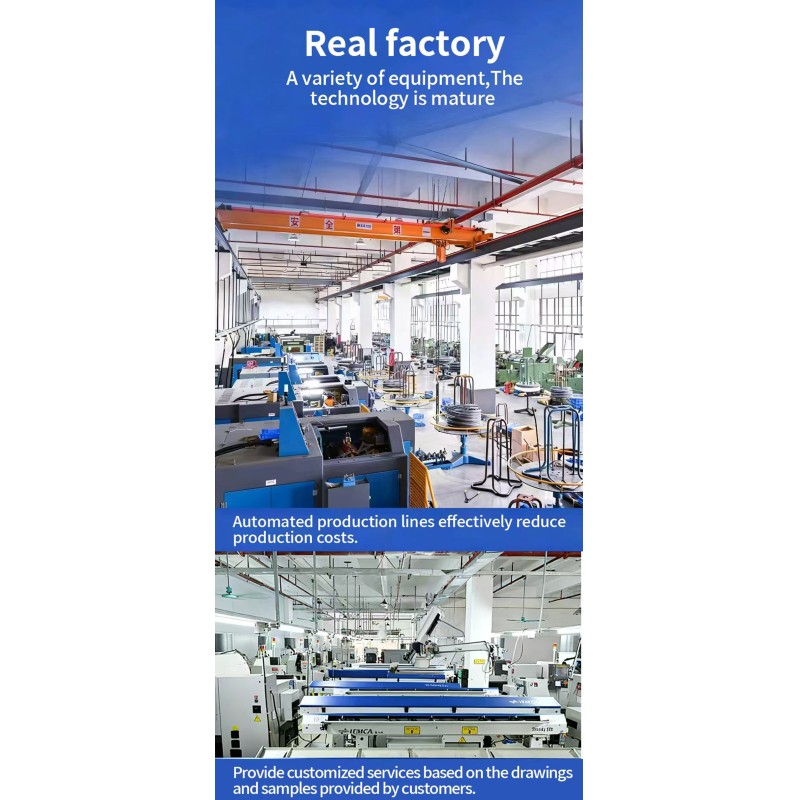

Our maximum processing outer diameter is 60, and the minimum control tolerance is 0.001. We have Japanese CNC Tsugami, CNC Citizen, multi-station cold extrusion forming machines, 500T press machines, casting equipment, and various process equipment, which can effectively provide customers with the best technical solutions.
Our company has a total of 300 employees, including 20 technicians, 10 engineers, and 15 quality control personnel. We have over 300 pieces of equipment.
Our company implements 8S management and has passed ISO9001 and TS16949 automotive certifications.
Our customers include , bo-sch, Foxconn, Motors, Husqvarna, Shimano, NVIDIA, DJI Drones, Siegenia, and Cater-pillar.
| OUR CAPACITY |
| Main product names: |
Stainless steel screws, carbon steel screws, pins, rivets, nuts, |
| eccentric nails, embedded parts, and other fasteners. |
| Business Type |
Factory / Maufacture |
| Service |
CNC Machining |
| Turning and Milling |
| CNC Turning |
| Cold heading |
| stamping |
| Assembly Service |
| Material |
1). Aluminum: AL 6061-T6, 6063, 7075-T etc |
| 2). Stainless steel:303,304,304L,316L,316F,630,410,420,430, etc |
| 3). Steel: 4140, Q235, Q345B,20#,45# 1215,12L14 ,1144,1006,1008,1010,1015,1018 ,10B21,1035,1065 etc. |
| 4)Alloy steel:5140,4135,4140,3435,5120,415 ,435,440 etc |
| 5). Titanium: TA1,TA2/GR2, TA4/GR5, TC4, TC18 etc |
| 6). Brass: C36000 (HPb62), C37700 (HPb59), C26800 (H68), C22000(H90),C27000,C51900,C11000,C3604,H62,H65 etc |
| 7). Copper, bronze, Magnesium alloy, Delrin, POM,Acrylic, PC, etc. |
| Finish |
Sandblasting, Anodize color, Blackenning, Zinc/Nickl Plating, Polish, |
| Power coating, Passivation PVD, Titanium Plating, Electrogalvanizing, |
| electroplating chromium, electrophoresis, QPQ(Quench-Polish-Quench), |
| Electro Polishing,Chrome Plating, Knurl, Laser etch Logo, etc. |
| Drawing format |
STEP,STP,GIS,CAD,PDF,DWG,DXF etc or samples. |
| Tolerance |
+/-0.01mm ~ +/-0.05mm |
| Surface roughness |
Ra 0.1~3.2 |
| Inspection |
Complete inspection lab with Micrometer, Optical Comparator, Caliper Vernier,CMM |
| Depth Caliper Vernier, Universal Protractor, Clock Gauge, Internal Centigrade Gauge |
